In industrial automation, robotics, semiconductor equipment, and high-end manufacturing, the precision, rigidity, and lifespan of the transmission system directly affect the overall machine performance. GIGAGER GSE series, featuring a unique double internal gear ring structure with minimal tooth difference and a modified planetary carrier system. This achieves a perfect fusion of high reduction ratio, ultra-high precision, and long-term precision retention, providing a robust and reliable rotary power core for your precision applications.
Core Advantages
Large Reduction Ratio, Compact & Flat Form Factor
With a unique double inner ring gear and small tooth difference design, we achieve two-stage large reduction ratios within an extremely compact axial footprint. The flat, hollow shape easily fits into space-constrained systems and simplifies inertia matching.
Ultra-High Positioning Accuracy & Extended Precision Lifespan
Standard positioning accuracy up to 10 arc-sec, and premium version down to 5 arc-sec (with self-eliminating backlash system);
The innovative deflection planetary carrier – integrating a rigid taper-sleeve axial adjuster – actively suppresses backlash and continuously compensates wear over the entire lifecycle, dramatically extending precision life.
Ultra-High Moment Rigidity – Rock-Solid Under Heavy Loads

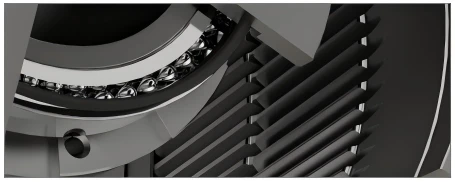

Equipped with a one-piece slewing bearing, moment rigidity is doubled. Even under high tilting moments, deformation is minimized, ensuring stable table support – ideal for heavy-duty rotary tables, 5-axis machine tools, and other demanding applications.
Ultra-High Torsional Rigidity – Distortion-Free Precision Transmission
Hardened helical gears double the torsional rigidity. No torsional deformation under high loads guarantees consistent dynamic response and repeatability.
Ultra-High Machining Accuracy – Micron-Level Runout Control
Thanks to ultra-precision manufacturing of the one-piece slewing bearing, axial runout and radial runout can reach as low as 0.002 mm – offering an ultimate rotational reference for optics, metrology, and precision assembly.

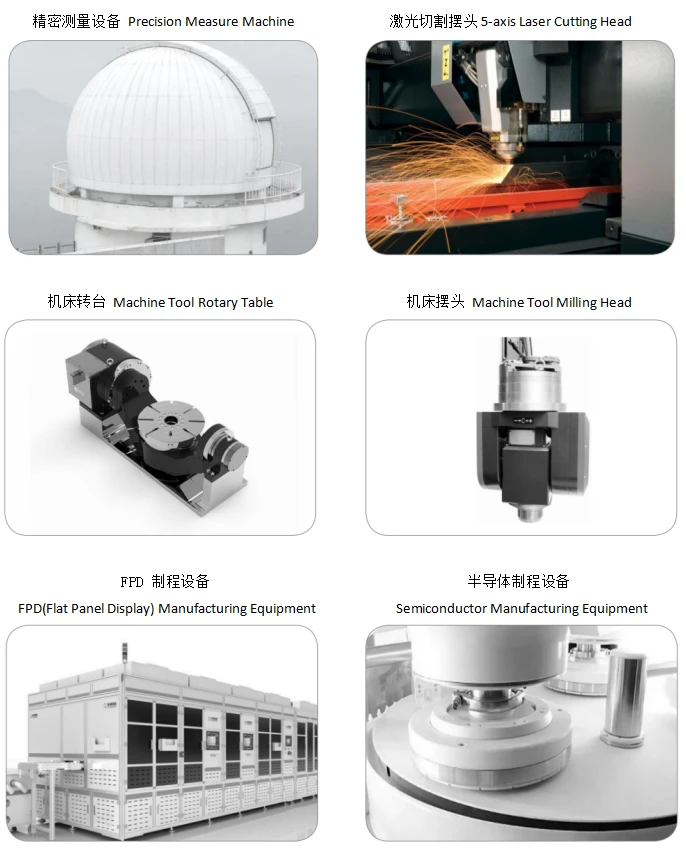

Applications
User Manual
Work environmental conditions:
1> Working temperature: -10° C-40° C
2> No corrosive or explosive gas
3> No metal powder or other dust
4> Do not splash water, oil, etc
Do not disassemble or alter product components arbitrarily:
To ensure optimal performance, please note that product components are precision-machined as matched sets. Disassembling
and reassembling, or interchanging parts between sets, may affect performance and deviation from original specifications.
Follow the recommended methods and precision standards:
1.Design and assemble all components correctly to ensure they meet the recommended installation accuracy in this manual.
2. Follow the tightening methods (using bolts, etc.) recommended in this manual.
3. Improper assembly may lead to malfunctions during operation, such as vibration, reduced service life, accuracy degradation, or damage.
4. Do not assemble or disassemble this product violently, and do not hit it with force using a hammer or other tools
Maintenance and Servicing:
When grease is contaminated or used in harsh environments. Regularly checking the grease for ageing and contamination.
Storage Method:
Well sealed after usage, to prevent the dust and moisture. Store in a cool, dry, indirect sunlight environment. Take some rust-proof measures and apply a rust inhibitor if necessary.
Why Choose Us?
We deliver not just components, but long-term stable transmission solutions. From material selection, tooth profile optimization, to bearing preload control, every step is rigorously calculated and verified. Our rotary platforms offer low backlash, long life, and extended maintenance intervals – all while maintaining supreme rigidity – helping you reduce total cost of ownership and elevate your equipment's performance.
