Product Overview

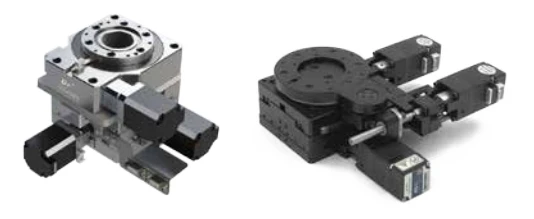

The GXYR series is a high-precision three-axis all-in-one electric positioning stage integrating X-axis, Y-axis linear motion and θ-axis rotary motion. Featuring an integrated compact design, the three motion axes are driven within the same plane, significantly reducing the overall volume compared to traditional multi-axis stacked structures, while offering smaller installation footprint and higher load capacity.
The GXYR series is available in standard sizes and also accepts customized solutions to meet diverse application requirements.
Key Features
All-in-One Design：
The three-axis integrated structure delivers high rigidity, low energy consumption, wide applicability, and easy operation. Compared to traditional multi-axis stacked XYθ solutions, the product height is reduced by over 50%.
High Precision & High Rigidity：
High-precision cross-roller guides and ball screw drives ensure high positioning accuracy and smooth operation. The θ-axis adopts cross-roller bearings, achieving zero backlash and high-precision angular adjustment. The simultaneous motion of three axes combined with four-point support ensures uniform load distribution.
Lightweight Material：
The main body is made of high-strength aluminum alloy with black anodized surface treatment, offering excellent wear resistance and aesthetic appearance. The lightweight design reduces the rigidity requirements for process equipment installation.
Flexible Control：
The three axes can be independently controlled, enhancing operational convenience. Standard stepper motors are included and can be paired with motion controllers for automated control.

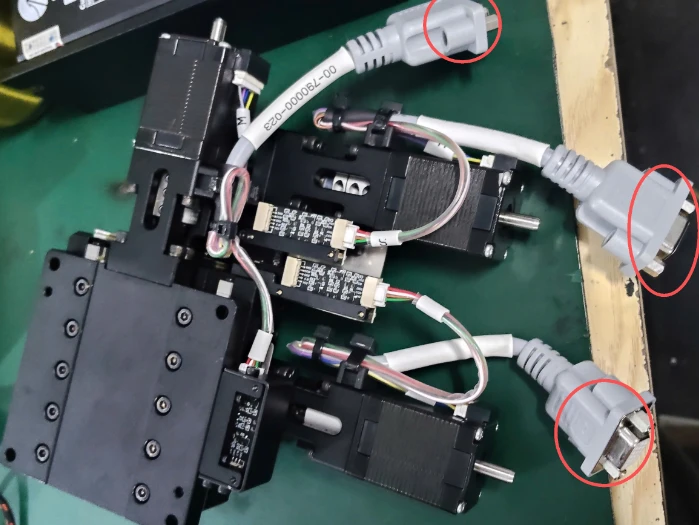

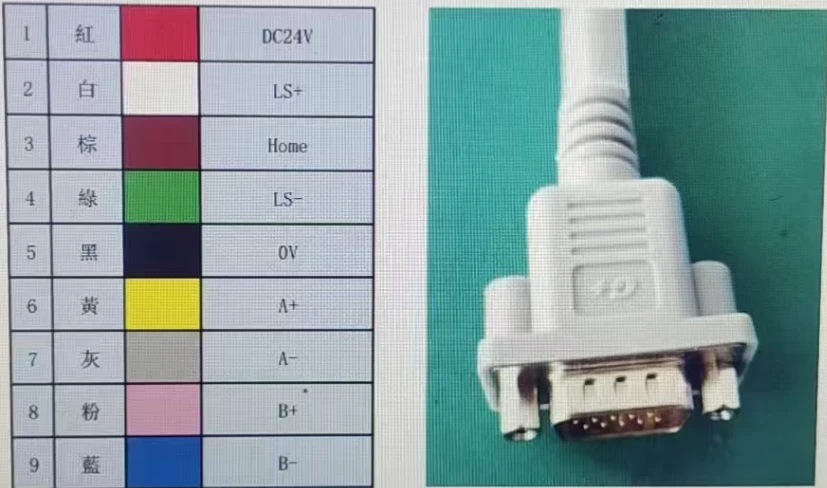

Extension cable plug design for easy operation
Applications
Panel Display / Optoelectronics → Alignment bonding, precision assembly, panel inspection
Semiconductor / Electronics → Probe alignment, wafer inspection, chip packaging
3C Electronics Manufacturing Mobile → phone component assembly, precision dispensing, screen inspection
Automation Equipment → Industrial robots, automated inspection equipment, vision positioning systems
Laser Processing → Laser marking, laser cutting, laser welding
Research & Optics → Precision displacement adjustment, optical communications, academic research
Customization Services

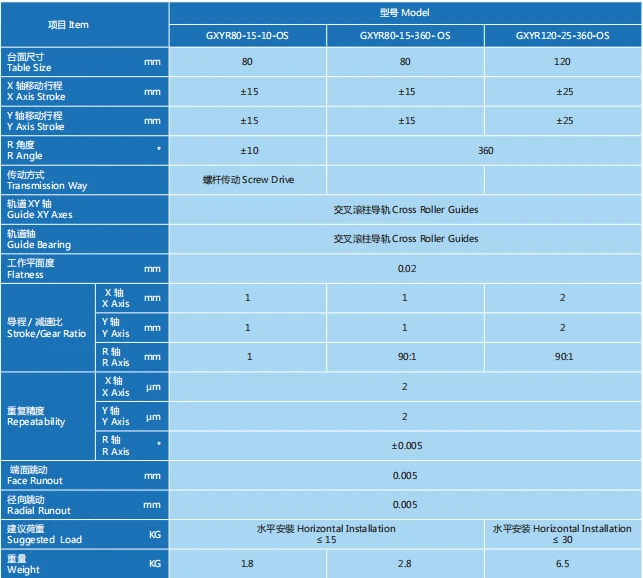

The GXYR series not only offers multiple standard specifications including 80, and 120 models, but also provides professional customized total solutions based on specific customer requirements:
Size Customization：Customized tabletop size and stroke specifications based on installation space and travel requirements.
Interface Customization：Flexible interface design dimensions to accommodate servo or stepper motors of any brand.
Drive Customization：Optional stepper or servo motors of different specifications.
Mounting Customization：Motors can be mounted on the left or right side to adapt to different equipment layouts.
We are committed to providing customers with comprehensive technical support and services from product selection to system integration.
For more product information or customization inquiries, please feel free to contact us.
