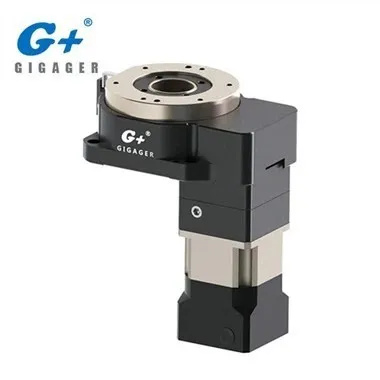

Hollow Rotary Tables/GSB Series

The GSB series uses tapered roller bearings, is suitable for horizontal installation, and is available in standard, right-angle, and planetary configurations. Servo or stepper motors can be freely selected, covering different power levels and models. The entire series boasts a repeatability ≤10 arc-sec, table flatness and concentricity ≤0.01mm, and an IP40 protection rating. Specifications range from GSB60 to GSB200, with permissible torques from 5.3 N.m to 80 N.m and axial loads from 100 N to 1300 N. Suitable for precision rotary positioning in electronics, 3C, and automotive parts industries, it provides efficient and reliable transmission support for automated production lines.
