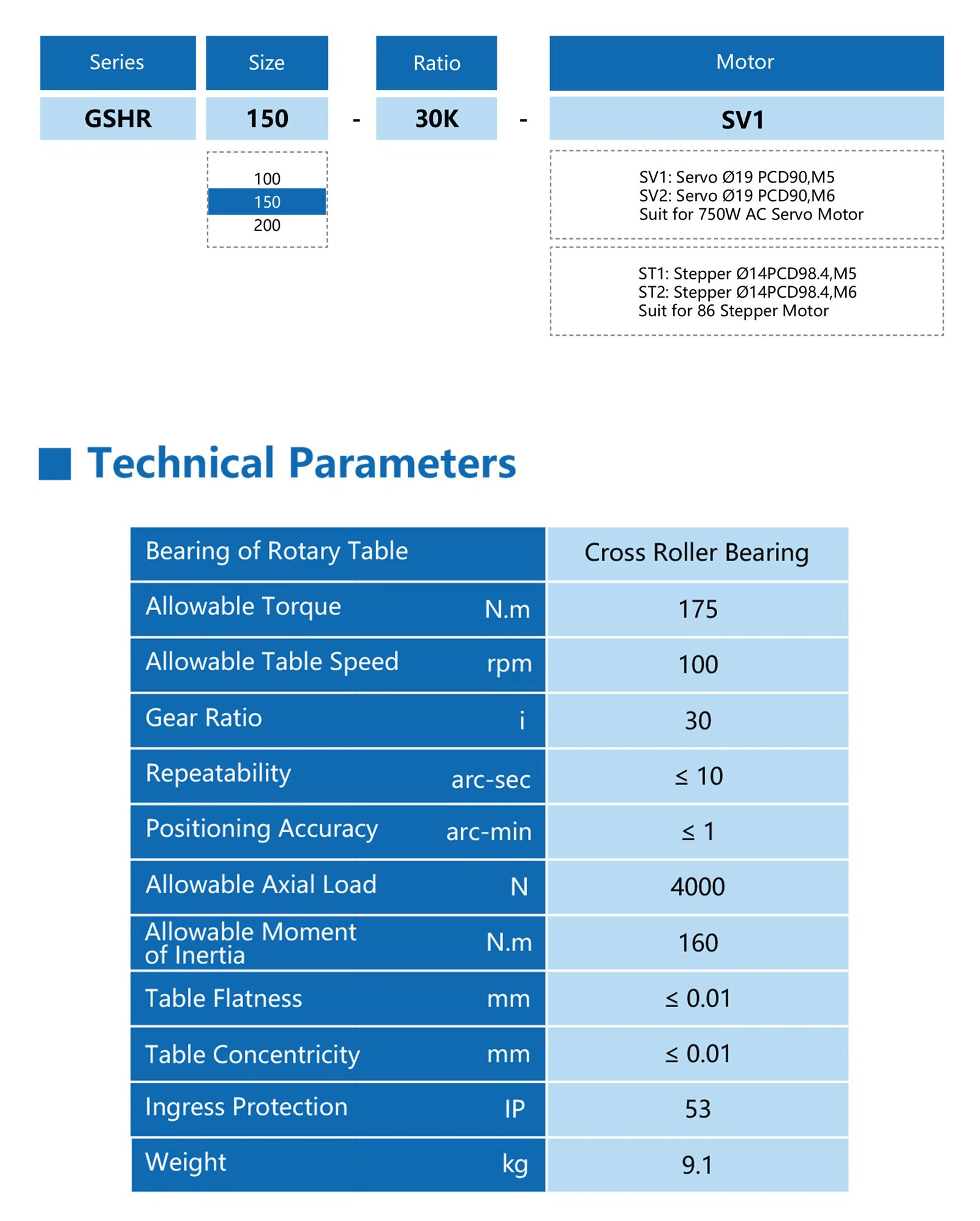

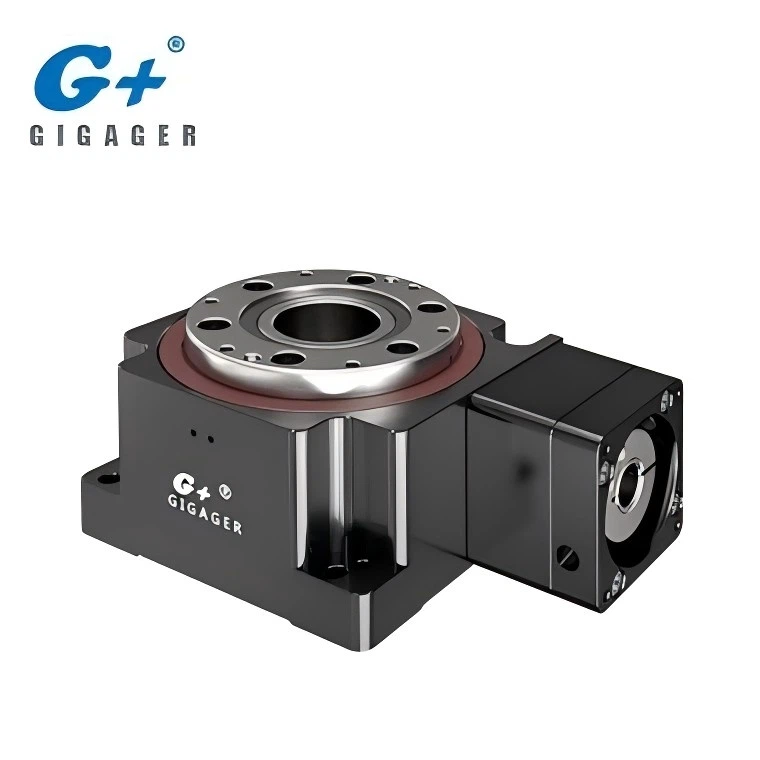

The G+ GSHR150 series boasts powerful performance, leveraging helical-guided hypoid gear technology to achieve a transmission accuracy of 30 arcseconds and an efficiency of 96%, with gear precision meeting JISO standards. It allows for a torque of 175 N.m, an axial load of 4000 N, and weighs 9.1 kg, compatible with 750W servo motors or 86 stepper motors. High-rigidity crossed roller bearings can handle large inertial loads, and high-hardness gear materials extend the precision life to 30,000 hours. Supporting multiple installation methods, it provides precise and reliable power support for high-load rotational scenarios in medium-sized automated production lines.

Category

GSHR Series

Share to

GSHR Series

High Precision and Efficiency: The spiral guide hypoid gear has the advantages of a higher ratio, high torque, high precision, and low loss than the spiral bevel.
It rotates in a sliding way. Transmission accuracy can reach 30 arc seconds, and transmission efficiency can reach 96%; the gear's geometric tolerance is less than 0.002mm, up to the JISO standard.
High rigidity cross roller bearing output Signal ratio 1 : 30, met the rotary requirement of large inertia load.
With high-hardness and high-density gear materials, the accuracy life can reach 30000hrs.
Horizontal, side, and suspension installations are available.
