GSHR100

Send Inquiry

Details

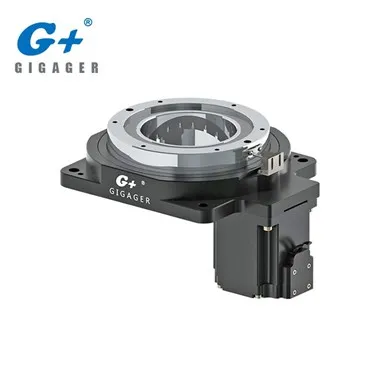

The G+ GSHR100 series rotary platform boasts outstanding performance, featuring helical-guided hypoid gears with a transmission accuracy of 30 arcseconds, an efficiency of 96%, and a gear geometric tolerance of <0.002mm. It allows for a torque of 80 N.m, an axial load of 1500 N, and weighs only 3.6 kg. It is compatible with 200~400W servo motors or 57/60 stepper motors. Built-in high-rigidity crossed roller bearings meet the demands of high-inertia load rotation; high-hardness, high-density gear materials ensure a precision lifespan of 30,000 hours. Supporting horizontal, side, and suspended installations, it is the preferred choice for high-precision rotary workstations in small to medium-load automated equipment.

Category

GSHR Series

Share to

GSHR Series

High Precision and Efficiency: The spiral guide hypoid gear has the advantages of a higher ratio, high torque, high precision, and low loss than the spiral bevel.
It rotates in a sliding way. Transmission accuracy can reach 30 arc seconds, and transmission efficiency can reach 96%; the gear's geometric tolerance is less than 0.002mm, up to the JISO standard.
High rigidity cross roller bearing output Signal ratio 1 : 30, met the rotary requirement of large inertia load.
With high-hardness and high-density gear materials, the accuracy life can reach 30000hrs
Horizontal, side, and suspension installations are available.
