Designed specially for servo motor gearbox for motion control applications. It takes full advantage of the flexibility of the servo motor, giving designers greater freedom of mechanism design.

1. Specification of Model GSN 60-05K-SV

product-1-1

Parameter
Motor Type	Brand 50-100W SV Motor
Rotary Platform Bearing	Cross Roller Bearing
Permissible Torque	N.m	5.2
Permissible Speed	rpm	300(Table Surface)
Gear Ratio	1:5
Moment of Inertia	kg.m2	3507×10-7
Permissible Axial Load	N	250
Permissible Moment of Inertia Load	N.m	5
Positioning Accuracy	min	≦ 1
Repeatability	sec	±5 ( 0.001° )
Platform Flatness	mm	±0.005
Platform Concentricity	mm	±0.01
Ingress Protection	IP	40
Precision Lifespan	H	15000
Weight	kg	1

Motor Parameter
Brand	Code	Model
Fuji	F	GYS 500/101
Mitsubishi	M	HF-KFS-13
Panasonic	P	MSMD-5AZ/01G
SANYO	S	Q1AA04010D
Yaskawa	Y	SGMAH-01
Oriental	O	DX010
Delta	T	ECMA-C30401

product-1-1

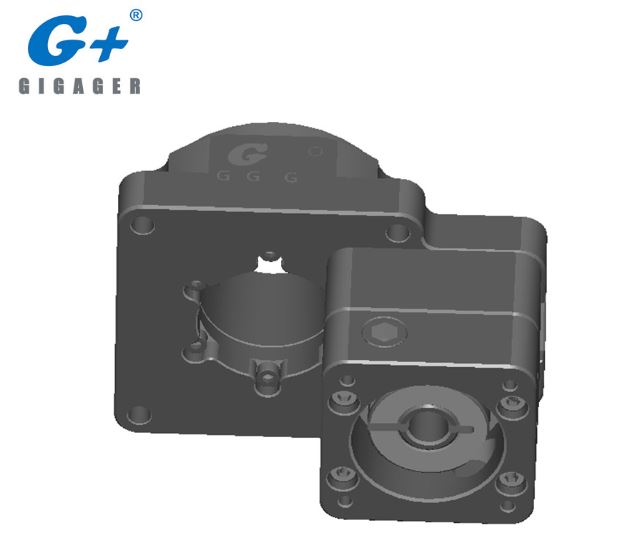

2. What is it?

3. What is the Product Features?

• Separate Table makes design more freely

• Large-diameter output table

• High Positioning Accuracy≦1

• High torque output

• High flexibility on choosing Servo Motor

• High cost performance

• Ideal Alternative to DD Motor and Cam Indexer

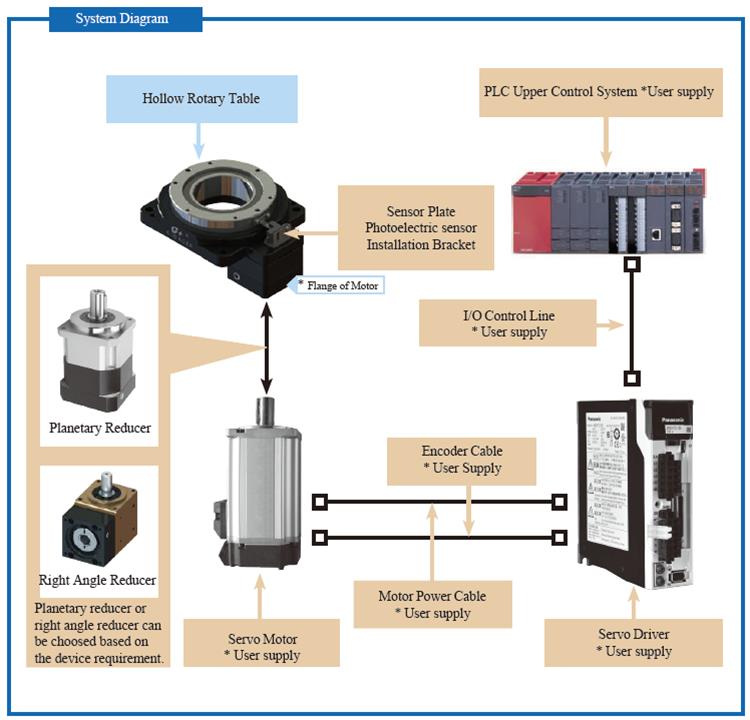

4. System Configuration of SV Type

product-1-1

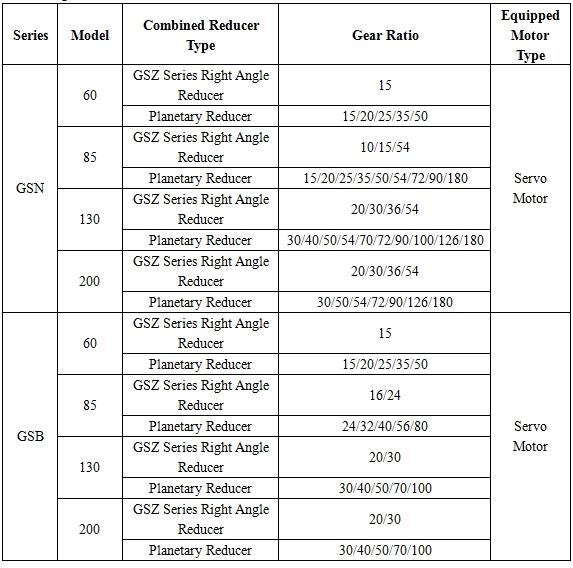

5. How Many Model Are Available?

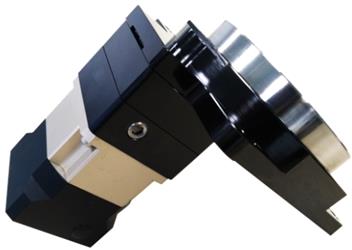

6. How to Achieve for Bigger Gear Ratio Output?

product-1-1

Combination

product-1-1

Combination

product-1-1

7. What Type of Device Could Use?

Applied for many application like CNC Indexing Device, Rotating Stage, Military Radar, Laser Marking Machine, Gyro Test, Gravity Sensor Test, Electronic Compass Test of mobile phone and other precise electronic product. It also can used for robot arm joints, automation production line, testing device, laser cutting, etc.
