Its main features are as follows:
1. Low Noise: Average under 63 dB.
2. Low Backlash: Backlash is less than 3 arcmin for a single stage. Less than 5 arcmin for two stages.
3 . High Efficiency: Above 97% for single stage, above 94% for two stages.
4. High Input Speed: up to 8000 RPM.
5 . High Torque: Higher torque output than conventional standard planetary gearboxes.

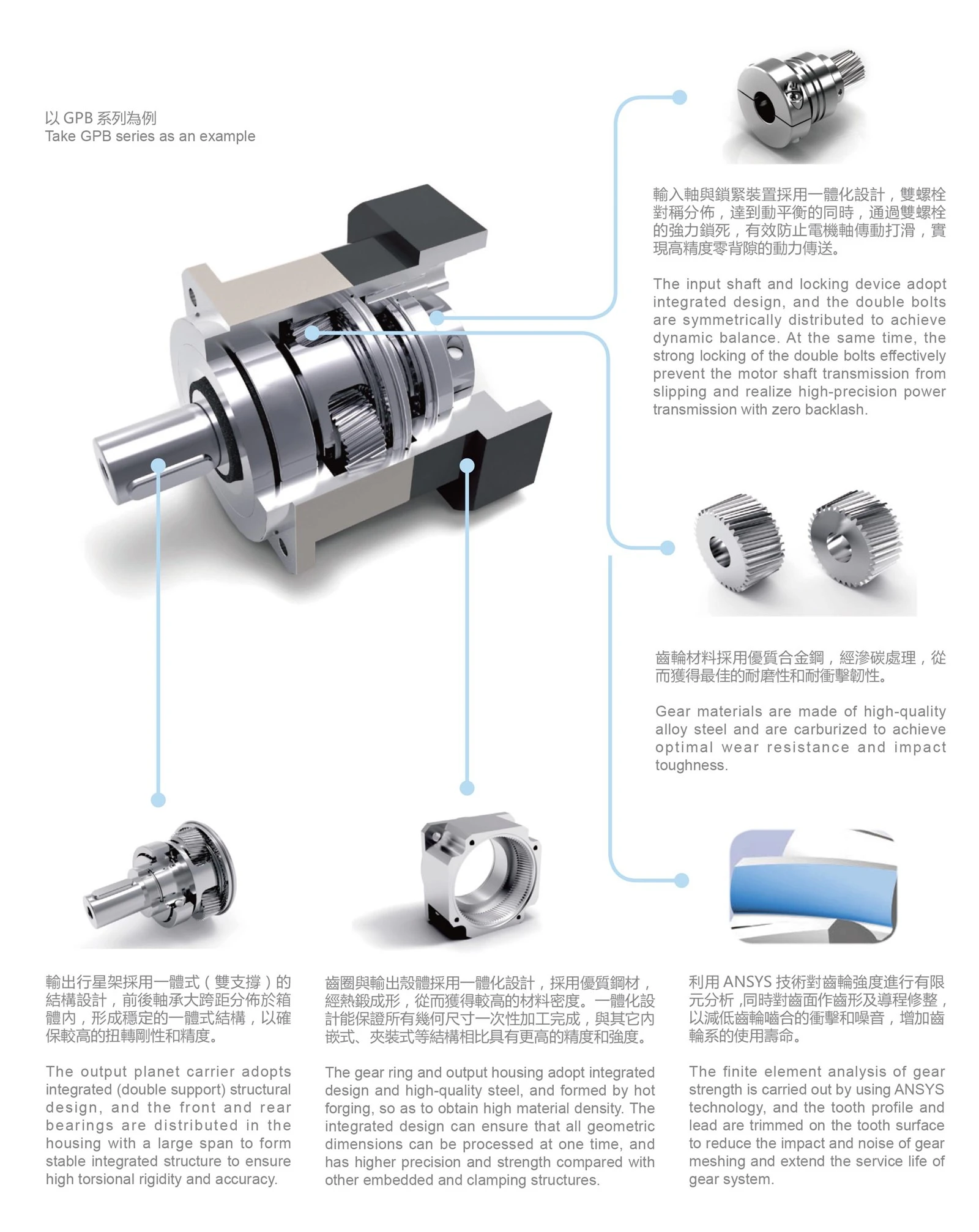

6. High Stability: Employs high tensile strength alloy steel. Gear hardening is made for the entire gear instead of only surface hardening,
which extends gear service life and maintains high accuracy as new after a long period of operation.
7 . High Reduction Ratio: with modular design. The planetary gearboxes can be interconnected, and the speed reduction ratio could be over 1/1000.
Precision Planetary Gear Reducer is widely used in the fields：
1. Aerospace, military industry.
2. Medical health, the electronic information technology industry.
3. Industrial robots, Production automation, CNC machine tool manufacturing industry.
4. Motor, textile, printing, food, metallurgical, environmental protection engineering, and warehouse logistics industry.
Hot Tags: Planetary Gearboxes/GPB Series, China, manufacturers, suppliers, factory, high quality
