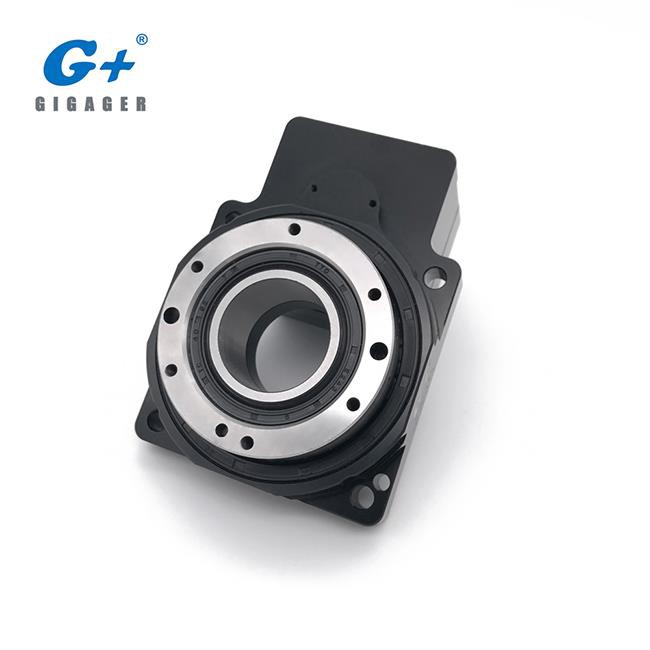

Designed specially for servo motor gearbox for motion control applications. It takes full advantage of the flexibility of the servo motor, giving designers greater freedom of mechanism design.
1. Specification of Model GSN 85-05K-SV
|
Parameter |
||
|
Motor Type |
Brand 200-400W SV Motor |
|
|
Rotary Platform Bearing |
Cross Roller Bearing |
|
|
Permissible Torque |
N.m |
8 |
|
Permissible Speed |
rpm |
300(Table Surface) |
|
Gear Ratio |
1:5 |
|
|
Moment of Inertia |
kg.m2 |
12593×10-7 |
|
Permissible Axial Load |
N |
500 |
|
Permissible Moment of Inertia Load |
N.m | 10 |
|
Positioning Accuracy |
min |
≦ 1 |
|
Repeatability |
sec | ±5 ( 0.001° ) |
|
Platform Flatness |
mm |
±0.005 |
|
Platform Concentricity |
mm |
±0.01 |
|
Ingress Protection |
IP |
40 |
|
Precision Lifespan |
H |
20000 |
|
Weight |
kg |
1.2 |
|
Motor Parameter |
||
|
Brand |
Code |
Model |
|
Fuji |
F |
GYS 201D5 |
|
Mitsubishi |
M |
HF-KFS-23/43 |
|
Panasonic |
P |
MSMD-022/042 |
|
SANYO |
S |
Q1AA06020D |
|
Yaskawa |
Y |
SGMAH-02/04A |
|
Oriental |
O |
DX220/240 |
|
Delta |
T |
ECMA-C30602/04 |
*The servo motor is configured by the customer. The above model is for reference only
