GSH60

Send Inquiry

Details

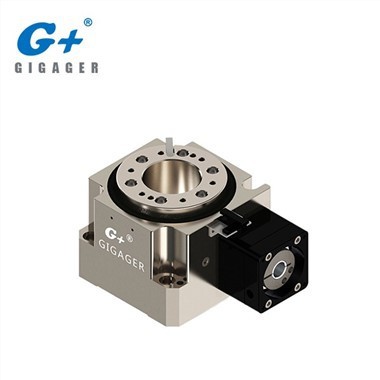

The G+ GSH60 uses crossed roller bearings to achieve a repeatability of ≤10 arcseconds and a positioning accuracy of ≤50 arcseconds. Its lightweight design, weighing only 0.9kg, makes it perfectly suited for small automated equipment and precision testing devices. Its IP54 protection rating can withstand general dust and water splashes, and its 30N·m allowable torque meets light-load rotation requirements. It supports 100W AC servo motors and 42 stepper motors, providing a flexible and efficient rotary power solution for small precision production lines.

Category

GSH Series

Share to

GSH Series

High Precision, High Efficiency
The spiral guide hypoid gear excels with higher ratio, torque, precision, and efficiency compared to spiral bevel. With sliding rotation, it achieves 30 arc seconds accuracy and 96% efficiency.

Geometric tolerance is below 0.002mm meeting JISO standard.

IP65

Suitable for high humidity environment waterproof and dust-proof.

High Torque, High Rigidity
The housing is made of alloy steel material, with a large module tooth root design, which is suitable for the rotation requirements of large inertia loads.

Long Life-span
With high-hardness and high-density gear materials, the accuracy life can reach 30000hrs.
