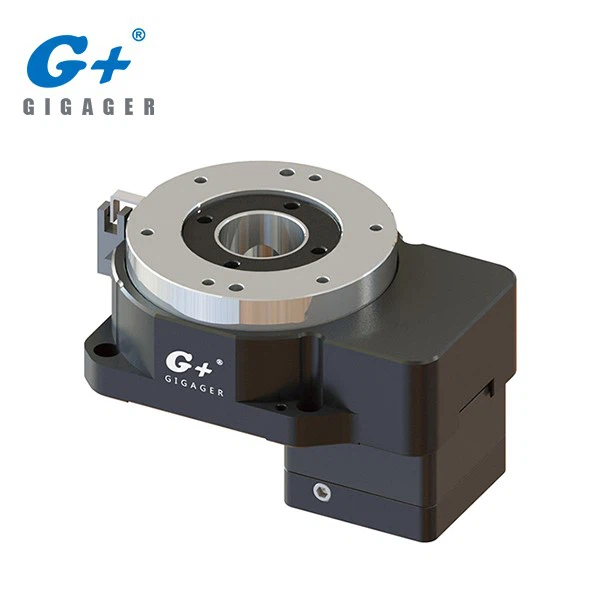

GSB100

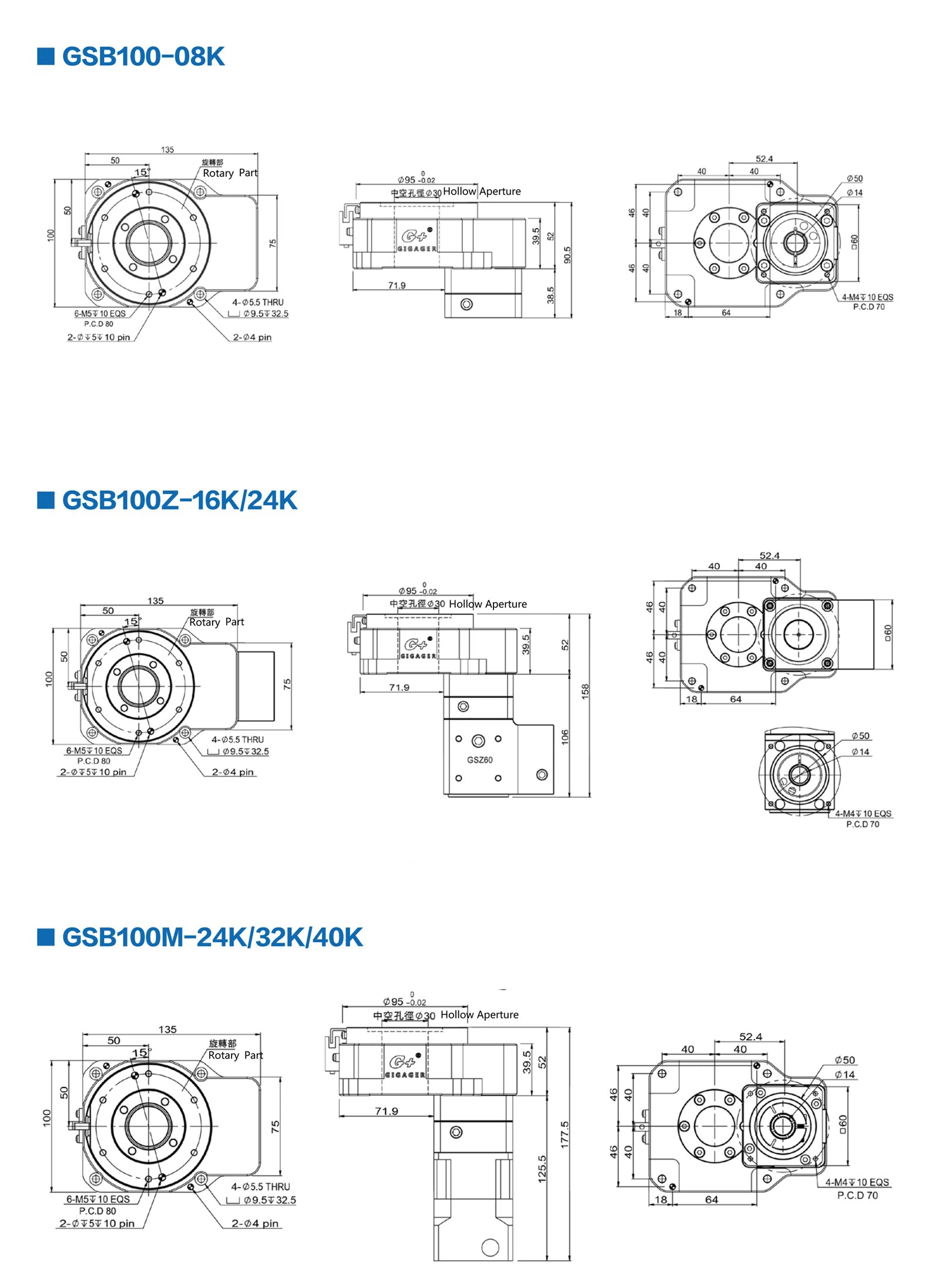

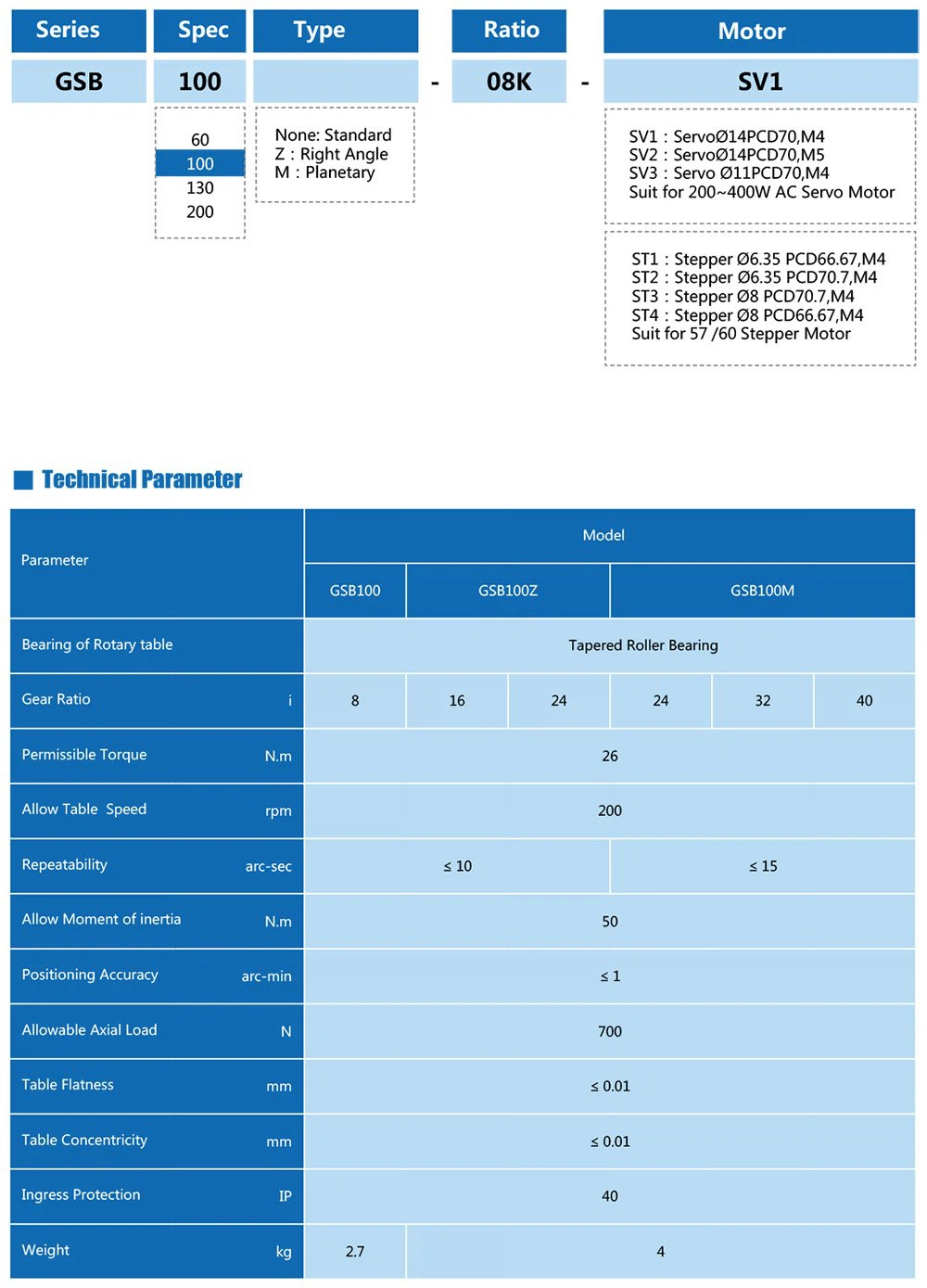

The G+ GSB100 uses tapered roller bearings and is suitable for horizontal installation. Its hollow structure facilitates wiring and piping, allowing direct connection to the worktable and robotic arm. It is available in standard, right-angle, and planetary configurations, with multiple reduction ratios (8, 16, 24, etc.). The motor can be freely selected as either servo or stepper, flexibly adapting to various working conditions. Technically, it has a permissible torque of 26 N.m, a repeatability accuracy of ≤10 arc-sec, an axial load of 700 N, and a table flatness and concentricity of ≤0.01 mm. Combining high transmission efficiency and high precision, it is suitable for precision rotary positioning in the electronics and 3C industries, providing a stable and efficient solution for automated production lines.
