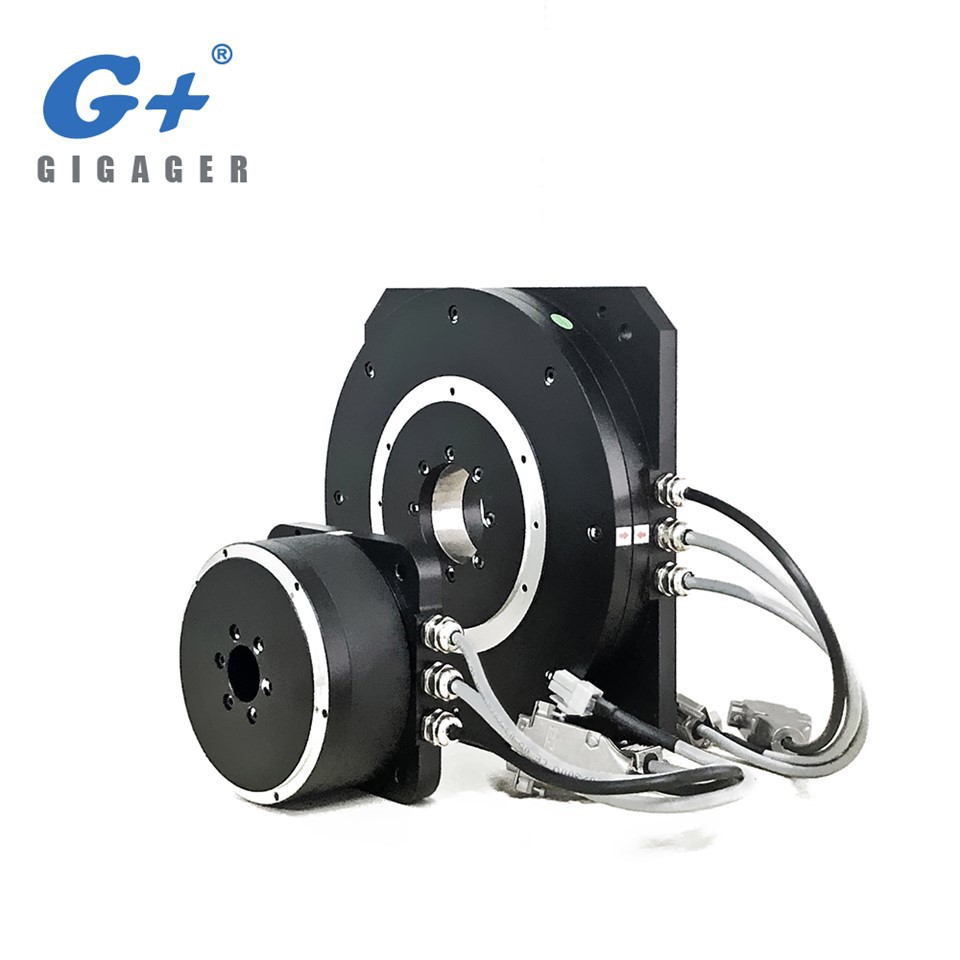

The GDE series Direct-Drive Motors feature high-precision positioning and low heat generation. The load can be directly mounted onto the motor surface, reducing accuracy loss. The direct-drive method enables programmable division of workstations.

■ Built-in Encoder

Equipped with a built-in encoder to achieve true absolute positioning. The load is mounted directly on the motor faceplate, minimizing intermediate components and reducing accuracy loss, ensuring reliable high-precision positioning.

■ Hybrid Magnetic Circuit
The energy-efficient hybrid magnetic circuit delivers high torque at low current, allowing continuous high-speed operation while maintaining low heat generation, significantly improving work efficiency.

■ Crossed Roller Bearing Support
Internally supported by fully sealed crossed roller bearings, the design offers high rigidity, smooth operation, maintenance-free lubrication, and clean environmental compatibility, making it suitable for dust-free applications.

■ Hollow Shaft Design
Select models feature a large-aperture hollow shaft design, ideal for applications that require routing cables or piping.

GDE
